Tip for Problem 1

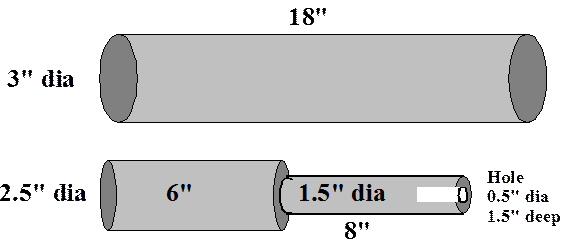

Using the operations performed in the first machining practica (5^th Week). Explain how you would make the following part shown at the bottom from the stock shown at the top.

To help you prepare the answer consider the following.

• List the possible operations and the purpose of each operation.
• List the limits for various operations (for example depth of cut during turning)
• After examining the above lists put the operations in order.
• Make sure you justify your reasoning.
